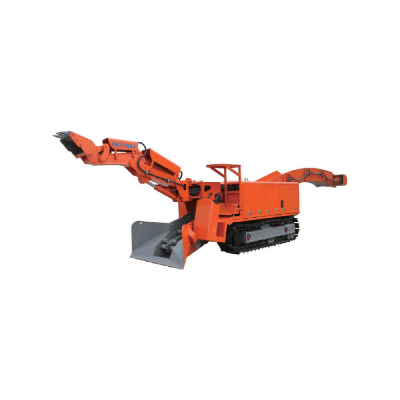

Excavator type loader (crawler loader) Product Instruction

Excavator type loader (crawler loader) Product Instruction

  • Min.Order Quantity: 1 Set
  • Supply Ability: 1000 Sets per Month
  • Port: Chinese Port
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2004-08-11
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  taian
  • Brand Name:  Cresics
  • Model Number:  CSLUCA700

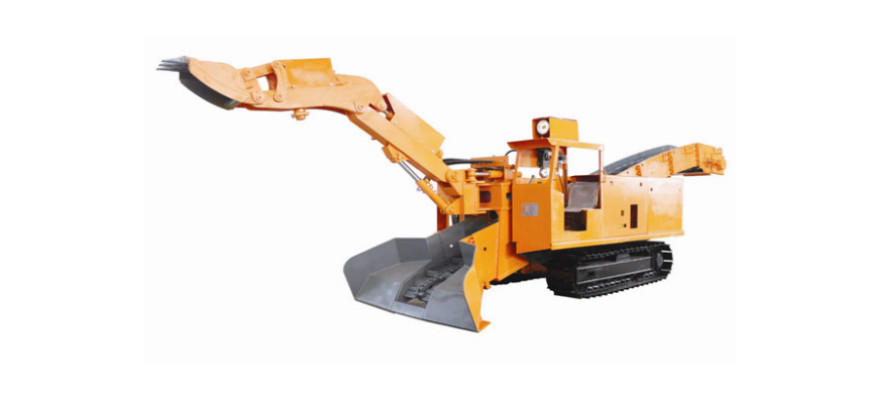

Excavator type loader (commonly known as crawler loader) is a continuous and effective ore-drawing equipment, it is the ideal substitute equipment for mining scraper mucker and claw loader, it can meet the requirement of the construction and dregs loading of small cross section of roadway. It is widely used in the loading working of various cross section of mine inclined shaft and vertical shaft, as well as the excavation of loading work of phosphate, iron and manganese ores, at the same time, this product is also widely used in various tunnel excavation work, such as railway tunnel, road tunnel and water inducting tunnel etc..

This loader is full- hydraulic track structure, and it adopts special backacting shovel system to dig up the rock(or ore), an it digs up the rock (or ore) into the central scraper conveying groove, and transport the rock (or ore) from the front part to the rear connection equipment(various harvesters, belt conveyor and car) through scraper conveying structure, at the same time, bucket of the excavator type loader can also be used to clean the working surface. Chassis of this equipment is according to the small excavator structure, and it adopts hydraulic motor driving track travel mechanism, it has strong performance and climbing performance, it is flexible, and can work in the moisture and ponding alley.

ZWY series track type excavating load consists 7 parts, including hydraulic system, electric control system, working arm, chassis, conveying groove, driving room system, and rack etc..


  • Place of Origin:  taian
  • Brand Name:  Cresics
  • Model Number:  CSLUCA700

Quartering hammer

Excavating type loader is equipped with high speed connector. The bucket on excavating arm and quartering hammer can be replaced within 1 minute.

The quartering hammer provides crushing maintenance for roadway bottom plate and bottom of lateral wall, performing crushing operation to the big rocks and coals, without needing cannon supplementing.

When excavating in the coal roadway or half-coal roadway with the rock hardness no more than 3, the excavation can be realized by using bucket and quartering hammer in turn.

Technical data

Model

Weight(kg)

Length (mm)

Width (mm)

Hydraulic oil pressure (MPa)

Impact rate (bpm)

Drill rod diameter (mm)

CSLUCA700

205

1330

235

11-14

400-500

68

Cable drum

The drum is fixed behind the body of Excavating type loader , driven by the electric power, which can deploy and retract the cable, without manual operation, while the Excavating type loader  moves forwards and backwards, reducing the hand labor and enhancing working efficiency.

Technical data

Model

JLB460/1140

JLB700/1140

Inner dia. of drum (mm)

460

700

Driving type

Hydraulic motor or explosive-proof motor

Voltage class (V)

380V or 660V or 1140V

Conductor type applicable

Outer dia. no more than 40mm, section area no more than 35mm2

Max. reeling length (m)

100

200

Deploying and retract speed (m/min)

35

25

Outline dimension (mm)

φ1100x670

φ1100x1300

Components matched

Guiding wheel, traverse unit, installing support

Weight (kg)

800

1350

Occasion applicable

Supplying power for coal mine movable equipment
