- Place of Origin: taian
- Brand Name: Cresics
- Model Number: CSLUCA700

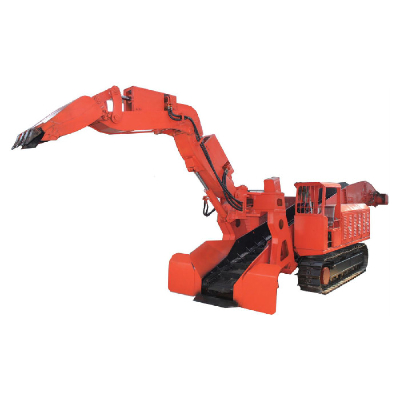

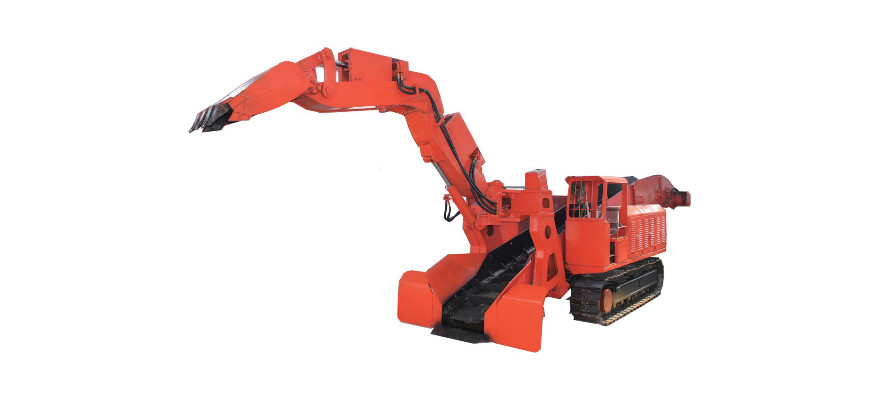

Excavator type loader (commonly known as crawler loader) is a continuous and effective ore-drawing equipment, it is the ideal substitute equipment for mining scraper mucker and claw loader, it can meet the requirement of the construction and dregs loading of small cross section of roadway. It is widely used in the loading working of various cross section of mine inclined shaft and vertical shaft, as well as the excavation of loading work of phosphate, iron and manganese ores, at the same time, this product is also widely used in various tunnel excavation work, such as railway tunnel, road tunnel and water inducting tunnel etc..
This loader is full- hydraulic track structure, and it adopts special backacting shovel system to dig up the rock(or ore), an it digs up the rock (or ore) into the central scraper conveying groove, and transport the rock (or ore) from the front part to the rear connection equipment(various harvesters, belt conveyor and car) through scraper conveying structure, at the same time, bucket of the excavator type loader can also be used to clean the working surface. Chassis of this equipment is according to the small excavator structure, and it adopts hydraulic motor driving track travel mechanism, it has strong performance and climbing performance, it is flexible, and can work in the moisture and ponding alley.
ZWY series track type excavating load consists 7 parts, including hydraulic system, electric control system, working arm, chassis, conveying groove, driving room system, and rack etc..
- Place of Origin: taian
- Brand Name: Cresics
- Model Number: CSLUCA700
Model | ZWY180/75L | ZWY220/75L | |
Large roadway use | Large roadway use | ||
Product Series | Large gradient type | Large gradient type | |
Section range (Width×height)(m) | （2.6m×4.0m ～ 5.8m×5.0m） | （3.0m×4.5m ～ 7.5m×7.5m） | |
Suitable roadway slope（°） | （-32°～ 20°） | （-32°～ 20°） | |
Loading capacity（m3/h） | 180 | 220 | |
Manipulation method | Hydraulic pilot control | Hydraulic pilot control | |
Main motor power KW | 75 | 75 | |
Dig Width（mm） | 5600 | 7000 | |
Distance of Dig（mm） | 2500 | 2600 | |
Height of Dig（mm） | 4000 | 4200 | |
Depth of Dig（mm） | 700 | 900 | |
Unloading height (variable)（mm） | 1650 | 2500 | |
Unloading distance (variable)（mm） | 3000 | 3000 | |
Swing arm maximum rotation angle（°） | ±45° | ±55° | |
Transport the largest material size（mm） | ＜ φ625 | ＜ φ780 | |
Scraper transport structure | Single chain or Double-stranded | Double-stranded | |
Scraper transport speed（m/min） | 48 | 48 | |
Track width inside (can be widened)（mm） | 1190 | 1400 | |
Speed（m/s） | 0.65 | 0.75 | |
Ground clearance（mm） | 300 | 330 | |
Minimum turning radius （m） | ≥8 | ≥8 | |
Ground pressure (Mpa) | ≤ 0.1 | ≤ 0.1 | |
Rated Work pressure (Mpa) | 22 | 22 | |
The biggest disintegration size | Long（mm） | 3350 | 4200 |
Width（mm） | 1055 | 1200 | |
High（mm） | 1500 | 1650 | |
The biggest disintegration weight（Kg） | 2500 | 3500 | |
Working state of the largest dimensions | Long（mm） | 11300 | 12830 |
Width（mm） | 2350 | 2640 | |
High（mm） | 4000 | 4200 | |
Total Weight（Kg） | 17800 | 20000 | |
