- Place of Origin: taian
- Brand Name: Cresics
- Model Number: ZWY-100/55L(x)

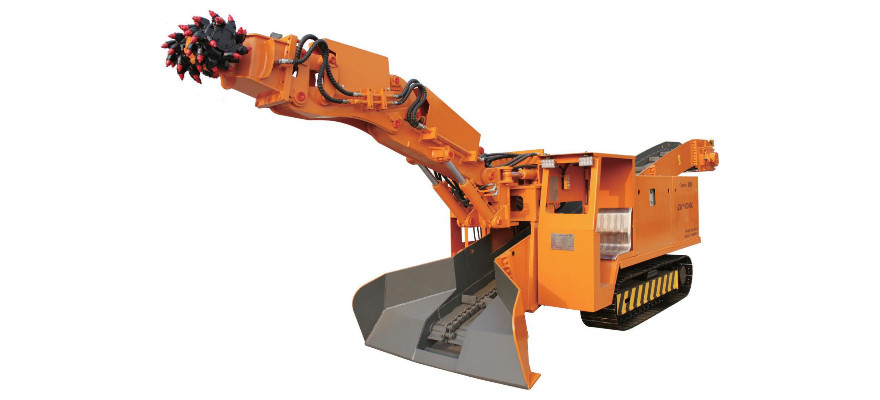

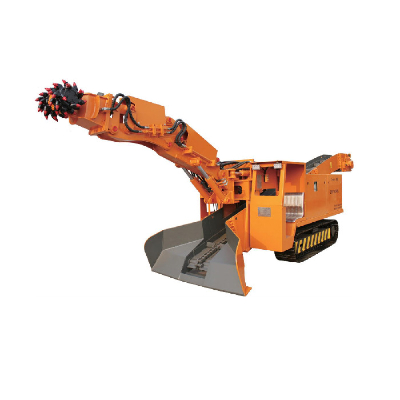

Product Description
Milling - Body Machine Applications Thousands of open-pit coal mines, tunnel boring and contour correction, channel trench milling, asphalt concrete milling, rock permafrost milling, root milling and other fields, the use of cutting the world's leading cutting-edge Technical production, efficient replacement of bucket, hammer, hydraulic shear and other common configuration, milling cutter for excavation or tunnel excavation provides a new kind of construction methods. Can be excavation or hardness of 4f below the coal or semi-coal tunnel excavation work, without gun digging. Rock tunnel digging and milling digging head interchangeable, demolition after the demolition with slag slag, to achieve - dual-use machine.
In order to ensure the overall performance of the equipment, the main hydraulics and electromechanical controls of the complete set are driven by imported high-end brand and high torque hydraulic motor to ensure that the milling cutter can cope easily under the more severe and high load working conditions.
Due to the heavy milling cutter, the whole machine adopts the design concept of super structural parts to ensure the enough weight of the whole machine, the body stability when cutting the rock and the improvement of the efficiency.
- Place of Origin: taian
- Brand Name: Cresics
- Model Number: ZWY-100/55L(x)
Technical Parameters
Project | Unit | Technical parameter value | ||
Product Number | ZWY-100/55L(X) | ZWY-120/55L(X) | ||
Product Series | Standard type | Standard type | ||
Section range (Width&height)(m) | m | 2.6×2.5 以上 | 2.6×3.5 以上 | |
Suitable roadway slope | ° | -16° ~ 16° | -16° ~ 16° | |
Loading capacity | m3/h | 100 | 120 | |
Manipulation method | Pilot control | Pilot control | ||
Main motor power | kw | 55 | 55 | |
Width | mm | 4000 | 4400 | |
Milling distance (from the shovel mouth) | mm | 1500 | 1500 | |
Milling High | mm | 3360 | 3700 | |
Milling Depth | mm | 400 | 400 | |
Unloading height | mm | 1400 | 1800 | |
Unloading distance | mm | 2000 | 2000 | |
Working arm maximum rotation angle | ° | ±30° | ±45° | |
The maximum size of the transport material | mm | < φ420 | < φ580 | |
Scraper chain structure | Single chain | Single chain | ||
Scraper chain transport speed | m/min | 44 | 44 | |
Track width inside (can be widened) | mm | 424 | 890 | |
Speed | m/s | 0.5 | 0.5 | |
Ground clearance | mm | 300 | 300 | |
Minimum turning radius | m | ≥6 | ≥7 | |
Ground pressure | MPa | ≤ 0.1 | ≤ 0.1 | |
Rated Work pressure | MPa | 22 | 23 | |
The biggest disintegration size | Long | mm | 3350 | 3350 |
Width | mm | 1600 | 1600 | |
High | mm | 1500 | 1500 | |
The biggest disintegration weight | Kg | 2500 | 3200 | |
The biggest disintegration weight | Long | mm | 9000 | 9800 |
Width | mm | 1600 | 2100 | |
High | mm | 3360 | 3700 | |
Total Weight | Kg | 9800 | 12000 |
